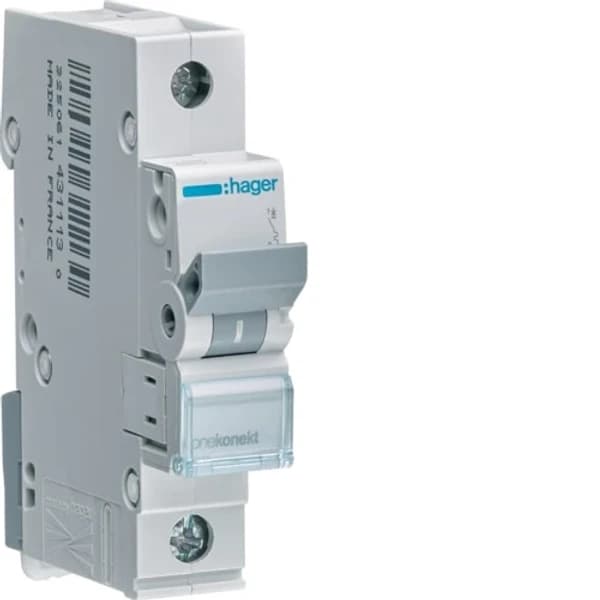

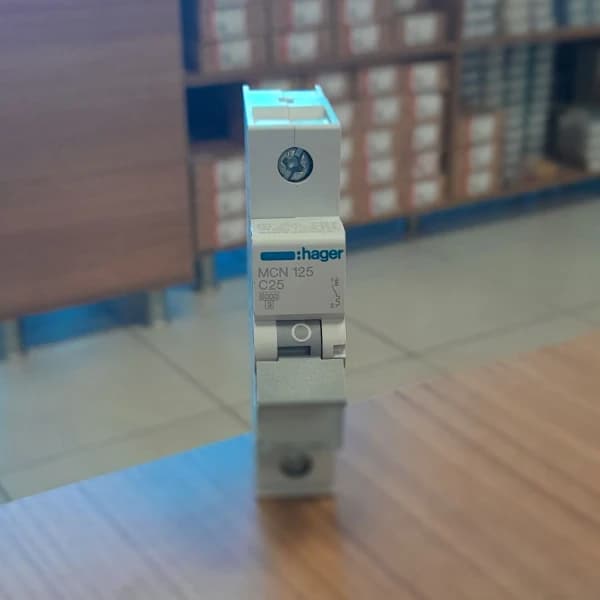

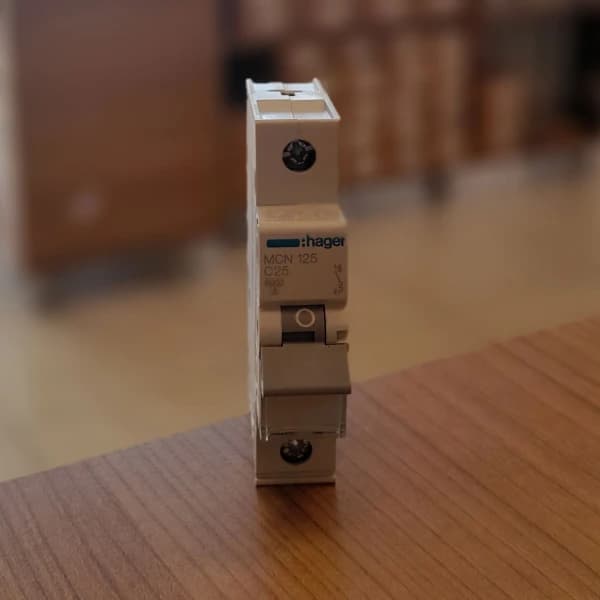

mcn125 hager mcb 1p 6ka c-25a 1m - MCN125 Hager MCB 1P 6kA C-25A 1M EAN 3250614311178
Quick Details
| Place of origin: | DE |
| Payment Terms: | moneygram, western union, credit card, t/t, |
| Port: | air, land, ocean, express, |
| Materials: | metal,plastic, |
| condition: | 100% original, |
| application: | industrial, automated, |
| material: | plastic, copper, |
Lead time
| 100 | 1 days |
| + 100 | To be negotiated |
Architecture
Number of protected poles
1
Number of poles
1 P
Type of pole
1 P
Curve
C
Functions
Concurrently switching N-neutral
No
Configuration
Number of modules
1
Connectivity
Top connection alignement for modular devices
Aligned terminal
Bottom connection alignement for modular devices
Aligned terminal
Main electrical features
Rated short circuit breaking capacity Icn AC according IEC60898-1
6 kA
Rated operational voltage Ue
230 / 400 V
Type of supply voltage
AC
Frequency
50/60 Hz
Voltage
Rated insulation voltage
500 V
Rated impulse withstand voltage
4000 V
Electric current
Rated current
25 A
Rated service breaking capacity Ics AC according IEC 60898-1
6 kA
min/maxi threshold value of the AC thermal operation
1.13 / 1.45 In
Magnetic regulating currrent
5 / 10 In
min/maxi threshold value of the DC magnetic operation
7 / 15 In
min/maxi threshold value of the DC thermal operation
1.13 / 1.45 In
Breaking capacity on 1 pole for IT 400V NF 60947-2
3 kA
Rated short circuit breaking capacity Icn under 230V AC according IEC60898-1
6 kA
Rated ultimate short-circuit breaking capacity Icu under 230V AC IEC 60947-2
10 kA
Rated ultimate short-circuit breaking capacity Icu under 240V AC IEC 60947-2
