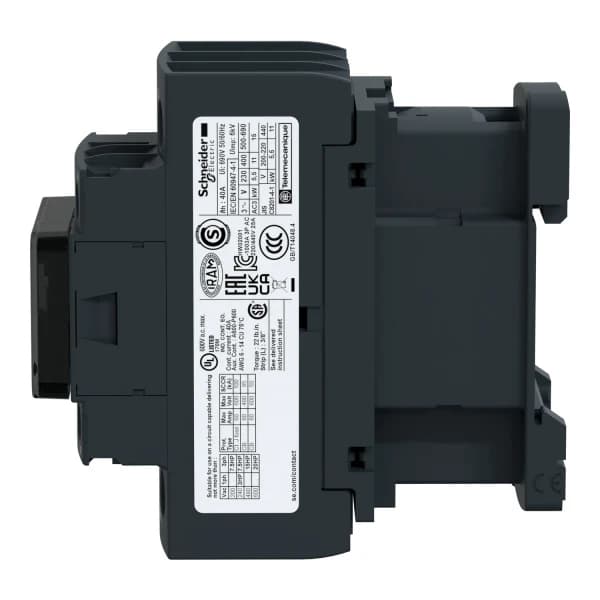

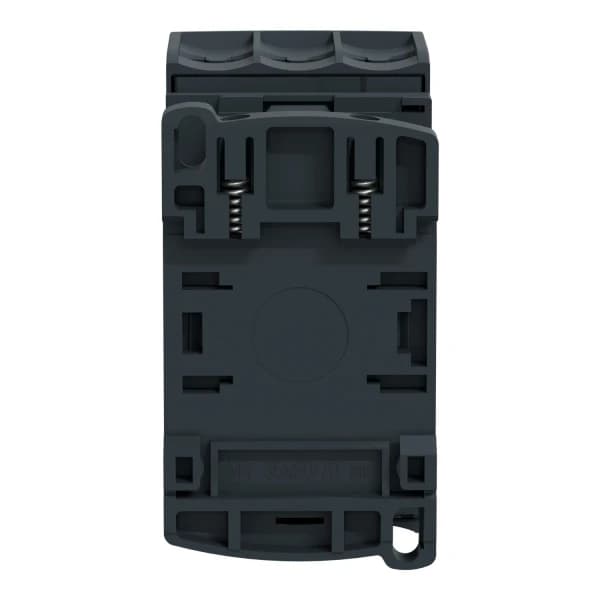

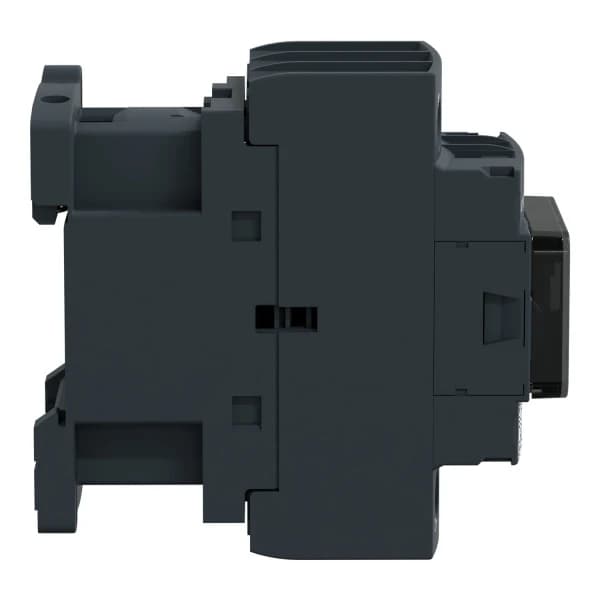

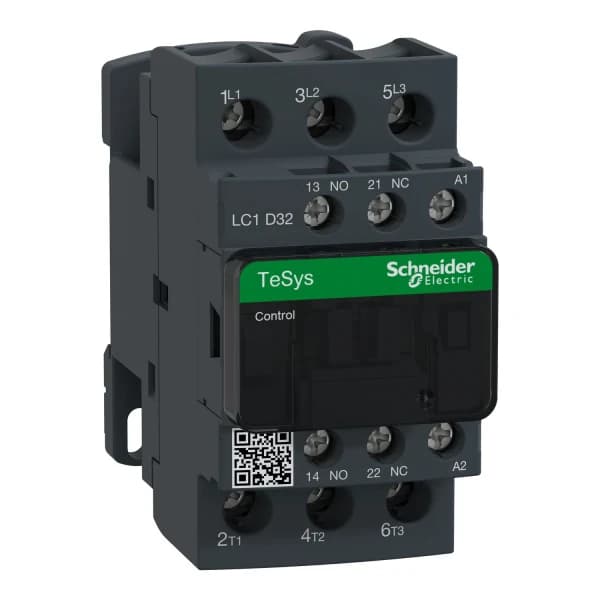

schneider lc1d32m7 tesys d contactor - Schneider LC1D32M7 TeSys D Contactor - 3P (3 NA) - AC-3 - <= 440 V 32 A - 220 V AC Coil
Quick Details
| Place of origin: | FR |
| Payment Terms: | moneygram, western union, l/c, |
| Port: | air, ocean, land, |
| Materials: | metal,plastic, |
| number of pole: | 3, |
| breaking capacity: | low, |
| usage: | automotive, low voltage, |
Lead time
| 100 | 1 days |
| + 100 | To be negotiated |
TeSys D contactor, 3 poles (3NO), motor control applications maximum 32A/690V AC-3/3e (15kW@400V) 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection via screw clamp terminals Provides high reliability and durability up to 3600 cycles/h and environments up to 60°C Compact (45 mm wide), DIN rail mounting or screw fixing Multi-standard certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
New modern look and feel of all machines
Electro is designed to meet the requirements of domestic and HVAC applications.
Easier to install and operate with multi-standard screws
IEC60335-1 compliance with improved fire resistance and dustproof aids
Digital customer experience for technical documentation
